SHOP KEYS ONLINE22mm Espagnolet Lock 0402
Technical Drawing
A 22mm Espagnolet Lock 0402 with a removable barrel. This lock has been specifically designed with a slimline body which fits perfectly on applications such as Wooden Office Furniture.
- Standard movements: 3 (180° CW)
- Nozzle diameter: 16.3mm or 17.8mm
- Lock Combinations: 500
- Standard finish: Bright nickel, black KTL
- Can be supplied with Master key and Sub-Master key systems
Rosettes available:
- Rosette 70080037B (16.3mm nozzle)
- Rosette C4236 (17.8mm nozzle)

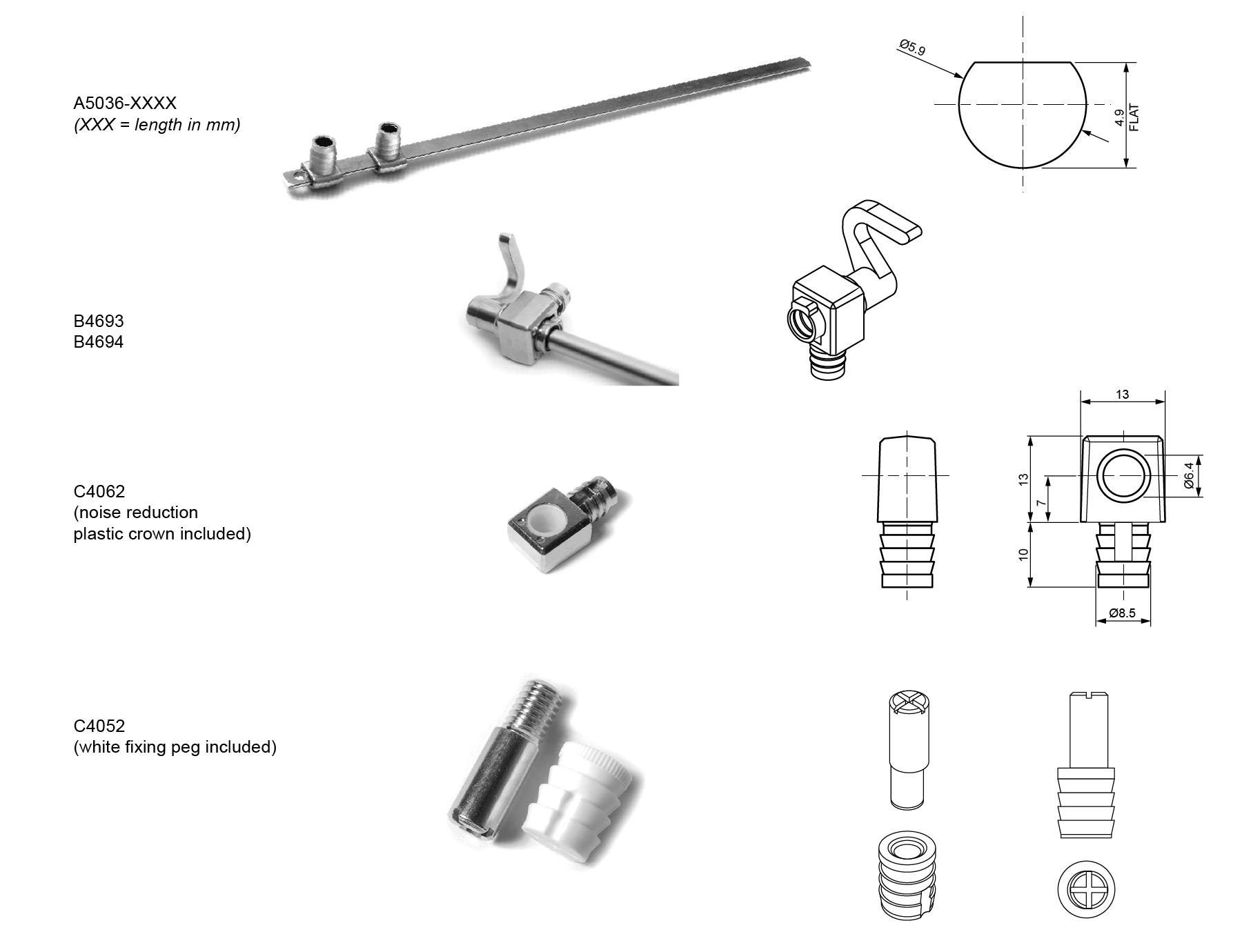

Accessories
| Product code | Description | Notes |
| A5036 – xxxx | Nickel plated rod to suit the 0402 espagnolet lock | Can be supplied in standard 1 – 2 metre lengths or cut to suit |
| B4693 | Quick fixing top hook to suit the A5036 rod | |
| B4694 | Quick fixing bottom hook to suit the A5036 rod | |
| C4062 | Rod guide to suit the A5036 rod | With noise reduction crown system |
Key Options
Metal Keys |
Capped Keys |
Split Keys |
||||||||||||||||||||
 |
 |
 |
||||||||||||||||||||
|
|
|
||||||||||||||||||||
General Master Key |
Sub-Master Keys |
Removal Key |
||||||||||||||||||||
 |
 |
 |
||||||||||||||||||||
|
|
|
